How to Secure a Gazebo on Concrete: All Methods

A gazebo on a concrete patio looks solid, but without proper fixing it is surprisingly vulnerable. Concrete does not grip posts the way soil does, and strong gusts can create uplift beneath the canopy, causing legs to shift, twist or even lift. Securing a gazebo on concrete is therefore not just about stability; it protects the frame, preserves alignment, and prevents long-term structural strain.

The right approach depends on whether the installation is permanent, how exposed the area is to wind, and whether drilling into the slab is acceptable. From heavy-duty bolt-down anchors to weighted, no-drill solutions, selecting the appropriate method ensures long-term stability without compromising the slab.

8 Ways to Anchor a Gazebo on Concrete

You can secure a gazebo on concrete using one of the following proven methods:

• Concrete wedge anchors – Heavy-duty expansion bolts drilled into the slab for maximum long-term stability.
• Sleeve anchors – Strong mechanical fixing suitable for medium-weight gazebos.
• Concrete screws (masonry screws) – Best for lightweight frames in sheltered areas.
• Epoxy or chemical anchors – Industrial-strength bonding for high-wind exposure.
• Weighted sandbags or leg weights – No-drill option for temporary setups.
• Concrete-filled decorative planters – Semi-permanent solution that adds visual appeal.
• Water-filled base weights – Portable and removable stability option.
• Ratchet straps to fixed structures – Reinforcement method for additional wind resistance.

Tools & Materials You May Need Before Securing a Gazebo

Before choosing a fixing method, it helps to prepare the basic tools and materials commonly required. Not every method will need all of these, but having them ready avoids interruptions during installation.

For drilling and permanent fixing methods:

• Hammer drill (not a standard drill)
• Masonry drill bits (10mm–12mm common sizes)
• Wrench or socket set
• Measuring tape
• Marker or pencil
• Dust blower, vacuum or compressed air
• Protective eyewear and gloves

For chemical or epoxy anchoring:

• Industrial anchoring epoxy cartridge
• Threaded rods
• Cleaning brush for drilled holes

For non-drill methods:

• Sand or gravel (for weight bags)
• Water-fillable base weights
• Heavy-duty ratchet straps
• Large decorative planters (if using concrete fill method)

Having the correct tools ensures clean drilling, accurate positioning, and a secure long-term result. Poor preparation often leads to loose fixings or cracked concrete.

Permanent & Heavy-Duty Fixing Methods (Drilling Required)

These methods create a direct mechanical bond between the gazebo base plate and the concrete slab, offering maximum resistance against uplift and lateral movement.

1. Concrete Wedge Anchors – Most Secure Mechanical Fix

Wedge anchors are considered the most reliable mechanical method for fastening metal or timber gazebo base plates directly into a concrete slab.

They work by expanding inside the drilled hole as the nut is tightened. This creates outward pressure against the internal walls of the concrete, locking the bolt in place.

When to Use

• Heavy steel or timber gazebos
• Open gardens exposed to wind
• Long-term installations

Step-by-Step Installation

1. Position the gazebo precisely where it will remain.
2. Mark the fixing points through each base plate.
3. Drill straight holes slightly deeper than the anchor length.
4. Clear all dust from the holes, as this is essential for grip.
5. Insert the anchor through the base plate.
6. Tighten evenly until fully secure.

Important Measurements

Anchor Diameter	Recommended Drill Depth
10mm	75–85mm
12mm	90–100mm

Avoid placing anchors within 50mm of slab edges to prevent cracking.

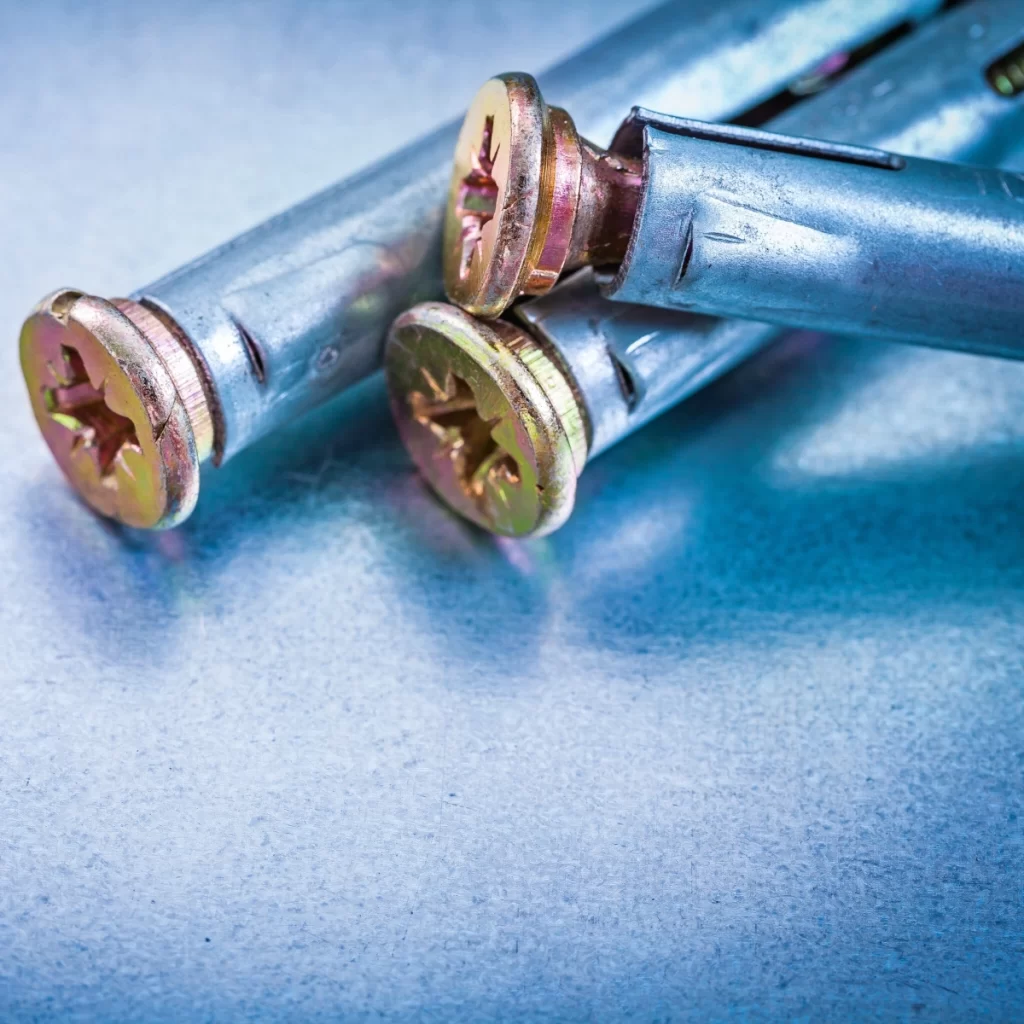

2. Sleeve Anchors – Reliable Alternative for Medium Duty

Sleeve anchors provide strong expansion-based fixing but distribute pressure more evenly than wedge anchors.

They are slightly more forgiving during installation and suitable for medium-weight structures.

Best For

• Aluminium gazebos
• Semi-permanent structures
• DIY installation projects

Installation Overview

1. Drill hole to correct diameter.
2. Insert sleeve anchor through base plate.
3. Tighten bolt to expand sleeve against concrete walls.

They offer dependable holding strength and are a practical choice where wedge anchors are not required.

3. Concrete Screws (Tapcon-Style Fixings)

Concrete screws are driven directly into pre-drilled holes. They create threads within the concrete itself.

Ideal For

• Lightweight aluminium frames
• Sheltered patios
• Situations where removal may be needed later

Installation Steps

1. Drill pilot hole using masonry bit.
2. Remove dust thoroughly.
3. Drive screw firmly into slab using impact driver.

They are easier to remove but not recommended for heavy timber gazebos.

4. Epoxy / Adhesive Anchors – Maximum Holding Strength

Epoxy anchoring creates a chemical bond rather than relying solely on expansion pressure. This is one of the strongest anchoring methods available.

It is particularly effective in high-wind locations.

When It Is Appropriate

• Coastal or exposed areas
• Large timber gazebos
• Heavy roofed structures

Installation Process

1. Drill hole.
2. Clean thoroughly with an air blower and brush.
3. Inject anchoring epoxy into the hole.
4. Insert threaded rod while twisting gently.
5. Allow curing time as specified.
6. Attach base plate using washer and nut.

Once cured, removal is extremely difficult, making it a true permanent solution.

Non-Drill & Temporary Fixing Methods

These methods stabilise the gazebo using applied weight rather than direct slab anchoring. They are ideal when drilling is not permitted.

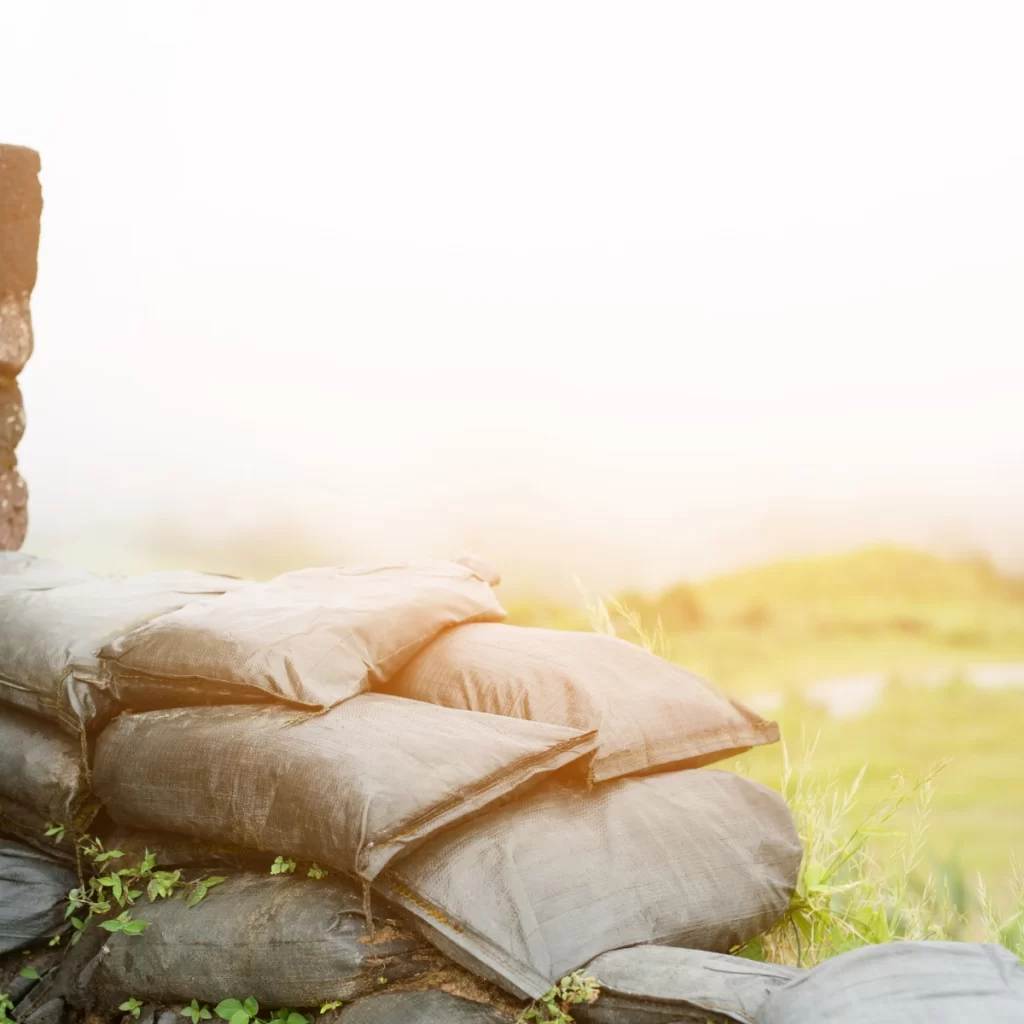

5. Weighted Sandbags or Leg Weights

Designed to wrap around each leg and filled with sand or gravel.

1. Position the gazebo correctly on the concrete surface.
2. Place one filled sandbag around each leg base.
3. Ensure the weight is evenly distributed and sits flat against the slab.
4. Secure straps tightly around the leg frame to prevent movement.
5. Check stability by gently pushing each corner.

This ensures the weight resists uplift and lateral movement.

6. Decorative Planter Bases with Concrete Fill

This method combines stability with aesthetic enhancement.

1. Place each empty planter in its final position.
2. Insert the gazebo leg centrally inside the planter.
3. Pour quick-setting concrete mix around the leg base.
4. Ensure the post remains upright and level while curing.
5. Allow 24–48 hours before applying load or tension.

This creates a stable, semi-permanent base without drilling the slab.

7. Water-Filled Base Weights

Portable containers that can be filled on-site with water or sand.

1. Attach each empty weight container to the gazebo leg.
2. Fill with water or sand once in the final position.
3. Ensure caps are tightly sealed to prevent leakage.
4. Confirm weights sit flush on the concrete surface.
5. Recheck stability after filling.

These should only be used in low-wind conditions.

8. Ratchet Straps to Fixed Structures

1. Identify a solid, immovable structure (post or pillar).
2. Attach the strap from the gazebo frame to the anchor point.
3. Angle the strap downward to reduce uplift force.
4. Tighten gradually until firm tension is achieved.
5. Recheck strap tension periodically.

This method reinforces stability but should not replace proper anchoring in exposed areas.

Preventing Concrete Damage During Installation

To protect the slab and ensure anchors hold securely:

• Keep all drilled holes at least 50mm from slab edges
• Never anchor into cracked or crumbling concrete
• Use a hammer drill with a masonry bit, not a standard rotary drill

Incorrect drilling weakens the slab and reduces anchor strength.

Ongoing Maintenance for Long-Term Stability

A secured gazebo still requires inspection.

Annual Checklist

✔ Tighten all bolts
✔ Inspect for rust or corrosion
✔ Check for slab movement
✔ Ensure legs remain flush to surface

After heavy storms, inspect immediately.

Choosing the Right Method for Your Situation

Scenario	Recommended Method
Permanent garden structure	Wedge anchors
High wind exposure	Epoxy anchors
Medium-duty installation	Sleeve anchors
Temporary use	Weighted leg bags
Decorative semi-permanent	Concrete-filled planters

Securing a Gazebo on concrete is ultimately about choosing the right fixing method for the conditions it will face. Wind exposure, structure weight, and whether the installation is permanent should guide your decision from the outset. A well-anchored gazebo performs consistently, without shifting, straining joints, or stressing the concrete slab.

When installed correctly, the anchoring system becomes part of the structure itself, distributing force evenly and preventing gradual loosening over time. Taking the time to secure it properly now ensures long-term stability, reduced maintenance, and dependable performance in every season.

FAQs

1. Can you secure a gazebo to concrete without base plates?

Yes, but it requires additional hardware. If the gazebo legs do not have factory base plates, you will need to install compatible metal anchor brackets or post shoes first. Anchoring directly through hollow legs without reinforcement is not recommended.

2. What happens if you drill into reinforced concrete?

If you hit rebar while drilling, stop immediately. Drilling through reinforcement can weaken structural integrity. You may need to reposition the anchor point slightly or use a scanning tool to detect reinforcement before drilling.

3. Do you need planning permission to anchor a gazebo permanently?

In some cases, permanent structures fixed to concrete may fall under local property regulations. It is advisable to check local building guidelines if the gazebo is large or permanently installed.
