HOMCOM Folding Bed with Mattress Assembly Manual (SKU:831-516V70)

The HOMCOM 831-516 folding bed is designed to provide comfortable, supportive sleeping space while folding compactly for easy storage. Ideal for guest rooms, small flats, and temporary setups, this bed combines a strong steel frame and a smooth folding mechanism.

WARNING & SAFETY INSTRUCTIONS

Before assembling or using your HOMCOM folding bed, review all safety guidelines for proper handling and long-term durability.

• Two-person assembly recommended: The frame sections are large and should be handled safely.
• Assemble on a clean, flat surface: Prevents scratches and keeps the frame level.
• Avoid pinch points when folding/unfolding: Keep hands clear of moving joints.
• Weight limit awareness: Do not overload or sit on unsupported frame edges.
• Keep children away during assembly: Small hardware may pose choking hazards.
• Check fasteners periodically: Tighten bolts as needed to prevent wobbling.
• Mattress expansion time: Allow the mattress to fully recover before use (up to 48 hours for 98% recovery).
• Indoor use: Designed for indoor, dry environments only.


UNBOXING YOUR FOLDING BED: WHAT’S INCLUDED

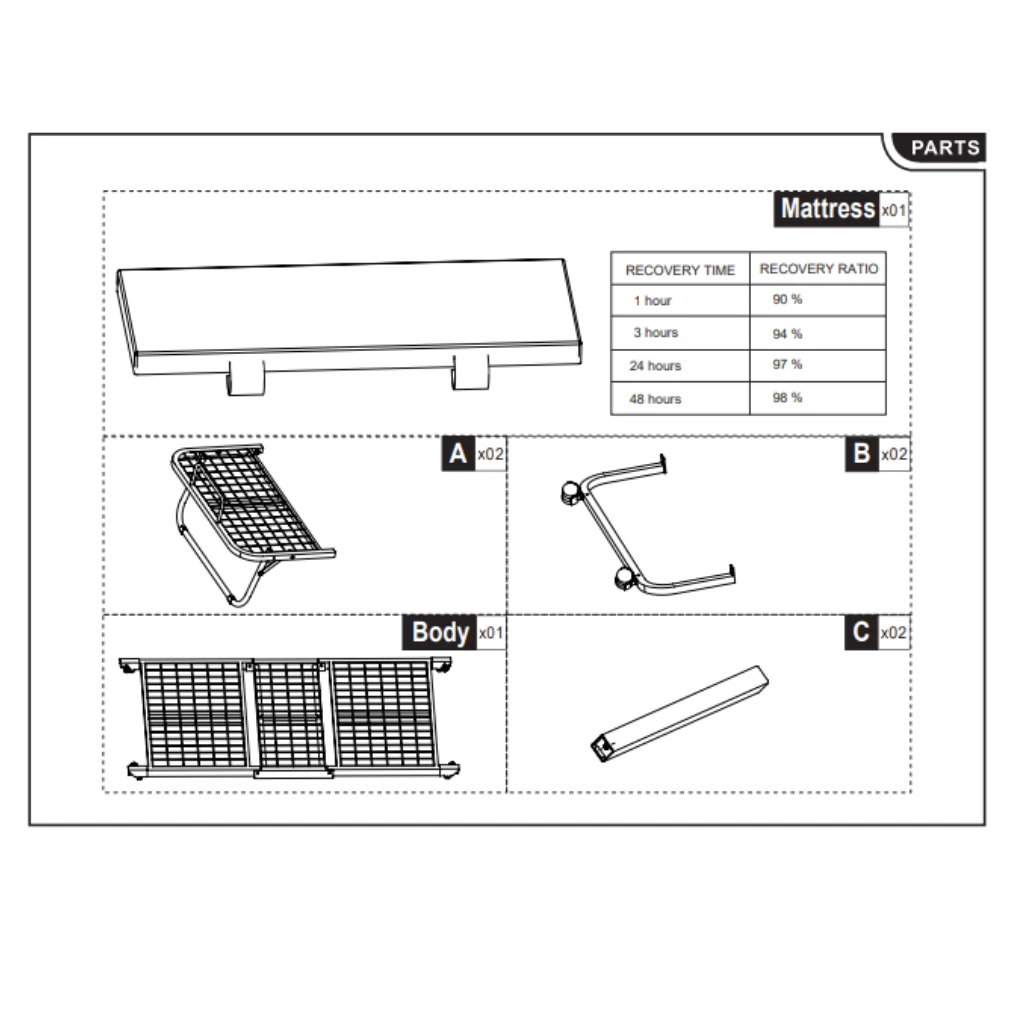

Parts

1. Mattress ×1
2. A – Folding Support Frames (Part A) ×2
3. B – U-Shaped Leg Frames (Part B) ×2
4. Body – Main Body Base (Body) ×1
5. C – Support Bars (Part C) ×2

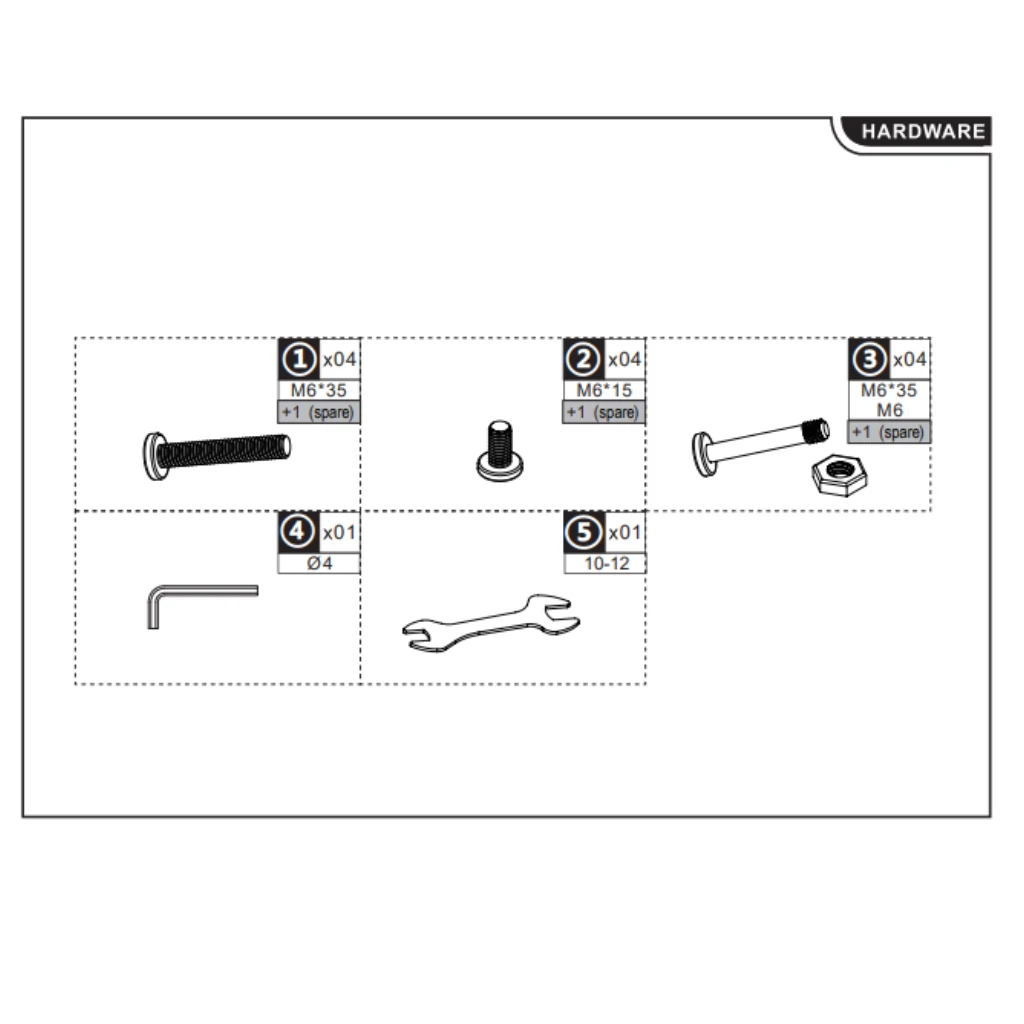

Hardware

① M6×35 Bolt (x4 + 1 spare)
② M6×15 Bolt (x4 + 1 spare)
③ M6 × 35 Bolts + M6 Nuts
④ Ø4 Allen Key (x1)
⑤ 10–12 Spanner (x1)

STEP-BY-STEP ASSEMBLY GUIDE

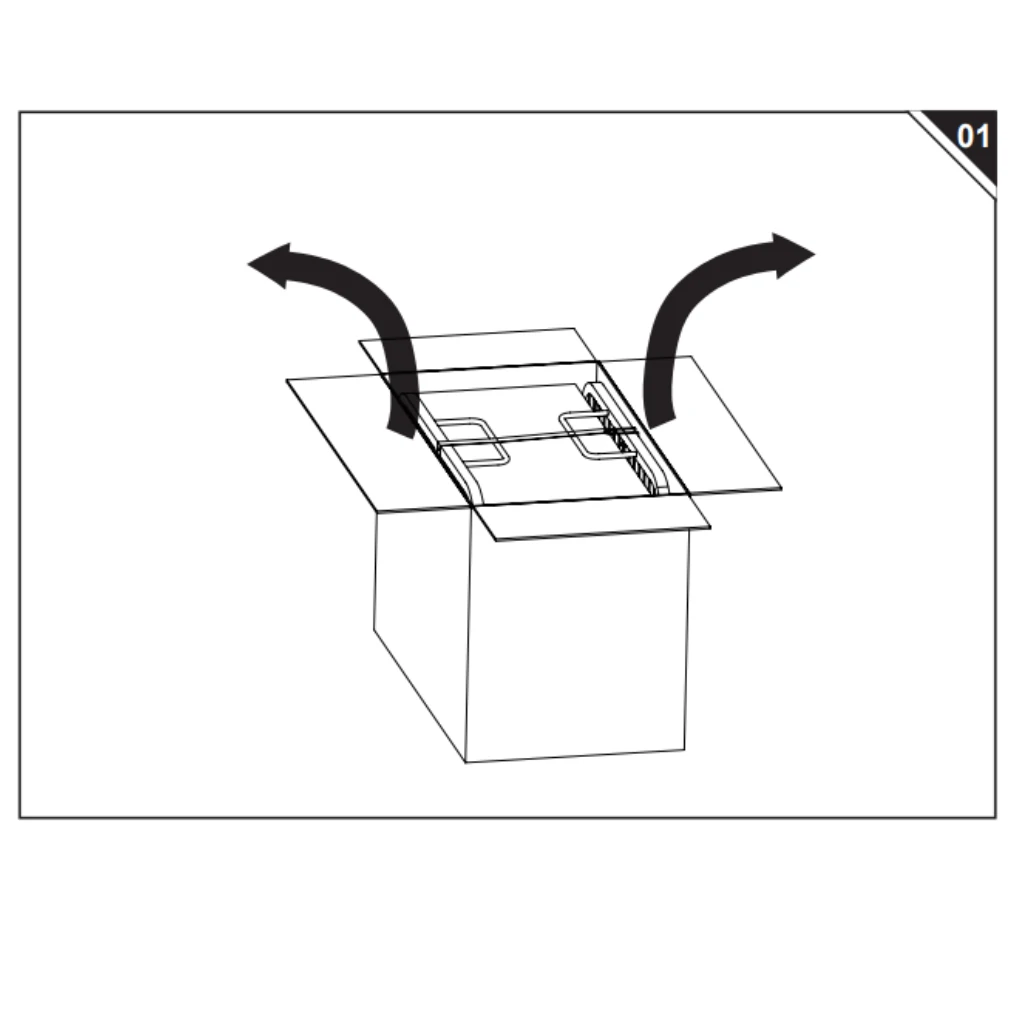

Step 1: Unbox and Prepare All Parts

• Fully open the box flaps to access the folded metal frame inside.
• Remove each part one by one to avoid pulling from a single corner, preventing bending.
• Lay all components flat and group them according to the parts list (Mattress, Part A, Part B, Part C, Body, and hardware).
• Check that all pieces and hardware match the contents list before beginning assembly.

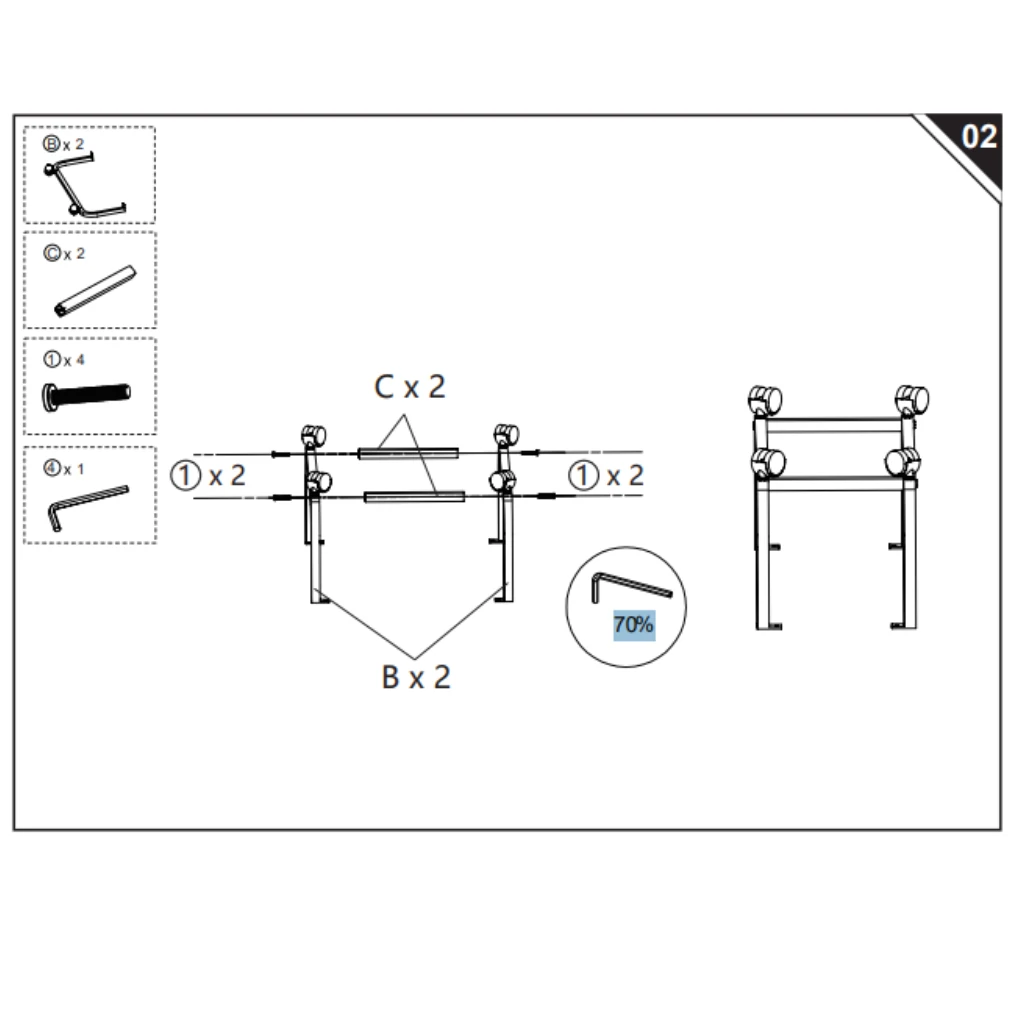

Step 2: Attach the Support Bars (Part C) to the U-Shaped Leg Frames (Part B)

• Position both U-Shaped Leg Frames (B) upright on a flat surface, spaced evenly apart so they face each other.
• Align one Support Bar (C) across the upper hinge points of the leg frames.
• Insert two M6×35 Bolts (①) through the hinge holes on each side of the Support Bar (C) and into the corresponding holes on Part B.
• Repeat the same process for the second Support Bar (C), installing it below the first one as shown in the diagram.
• Using the Allen Key (④), tighten the bolts to approximately 70%, leaving slight movement for later alignment.

Why Only Tighten to 70%?
Part B and C must remain slightly adjustable to ensure the Main Body Base (Part ④) aligns correctly in the next step. Full tightening will be completed after the structure is connected.

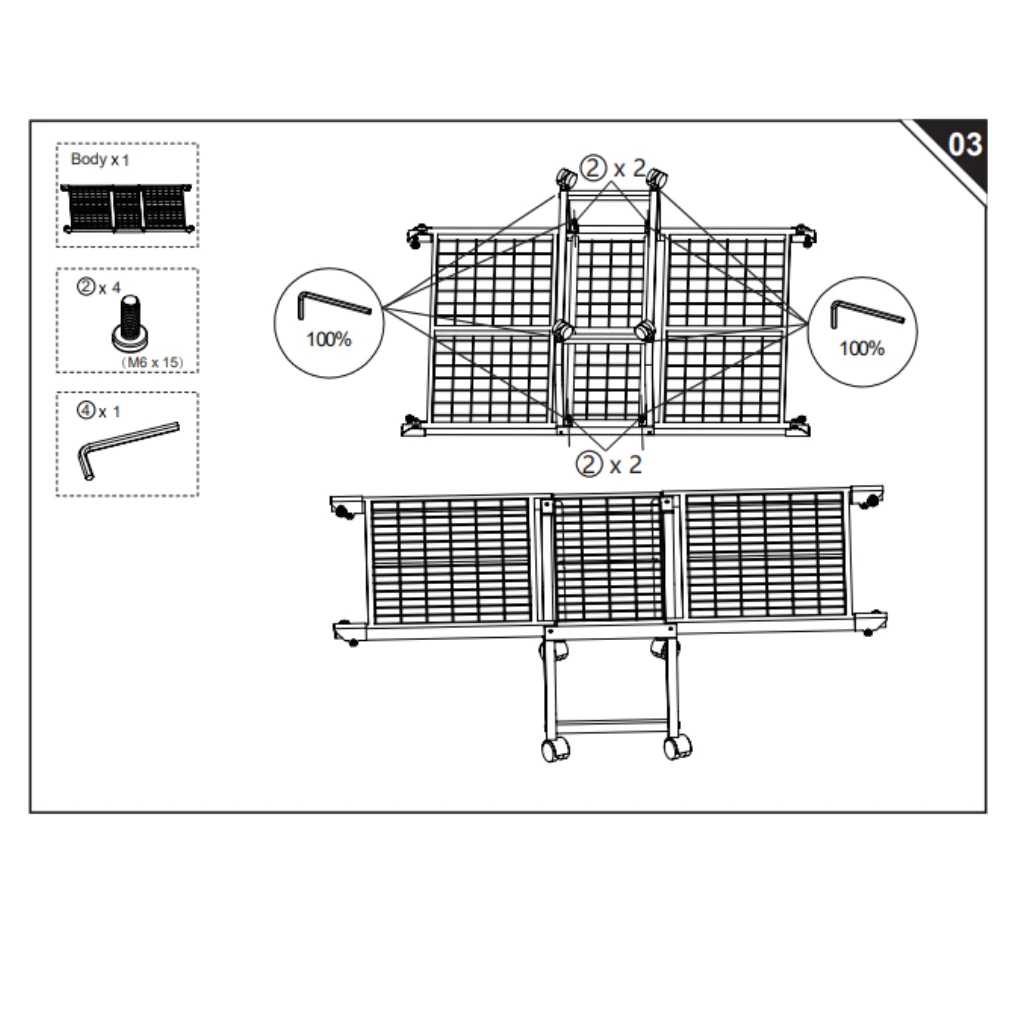

Step 3: Attach the Main Body Base (Body) to the Leg Assembly

• Lay the Main Body Base flat and fully opened on a clean surface, with the mesh Base hinges facing upward.
• Position the leg assembly underneath the body Base, aligning the metal hinge brackets on the legs with the mounting holes on the underside of the body frame.
• Once aligned, insert M6×15 Bolts (②) into each of the four connection points two on each side.
• Using the Allen Key (④), tighten all four bolts completely to 100%, ensuring the frame is firmly secured.
• Confirm that the Body Base is centred and the hinges move smoothly when the frame is lifted.

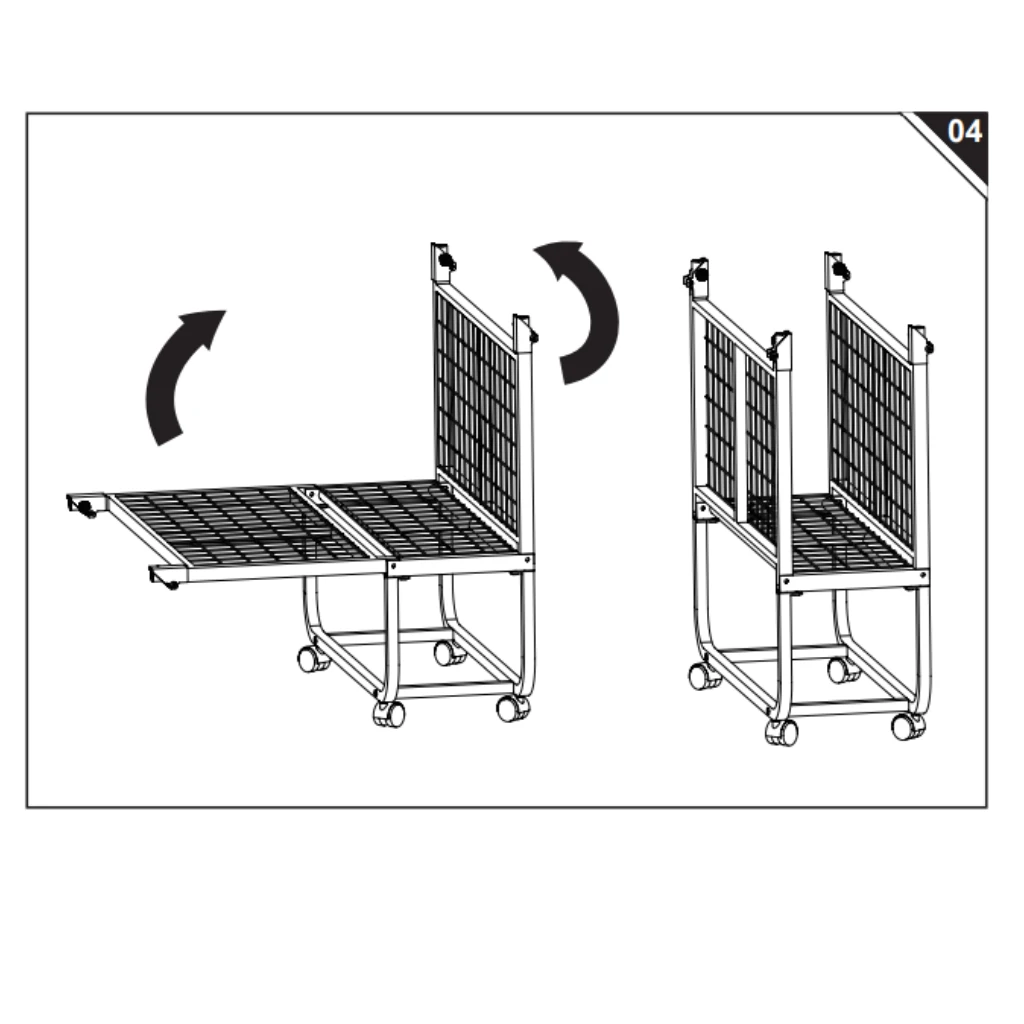

Step 4: Lift and Rotate the Side Bases Upright

• With the Body Base secured, gently lift one side Base upward following the direction shown in the illustration.
• Rotate the Base until it stands upright at a 90° angle.
• Repeat for the second side Base.
• Ensure both bases lock into place evenly without leaning.

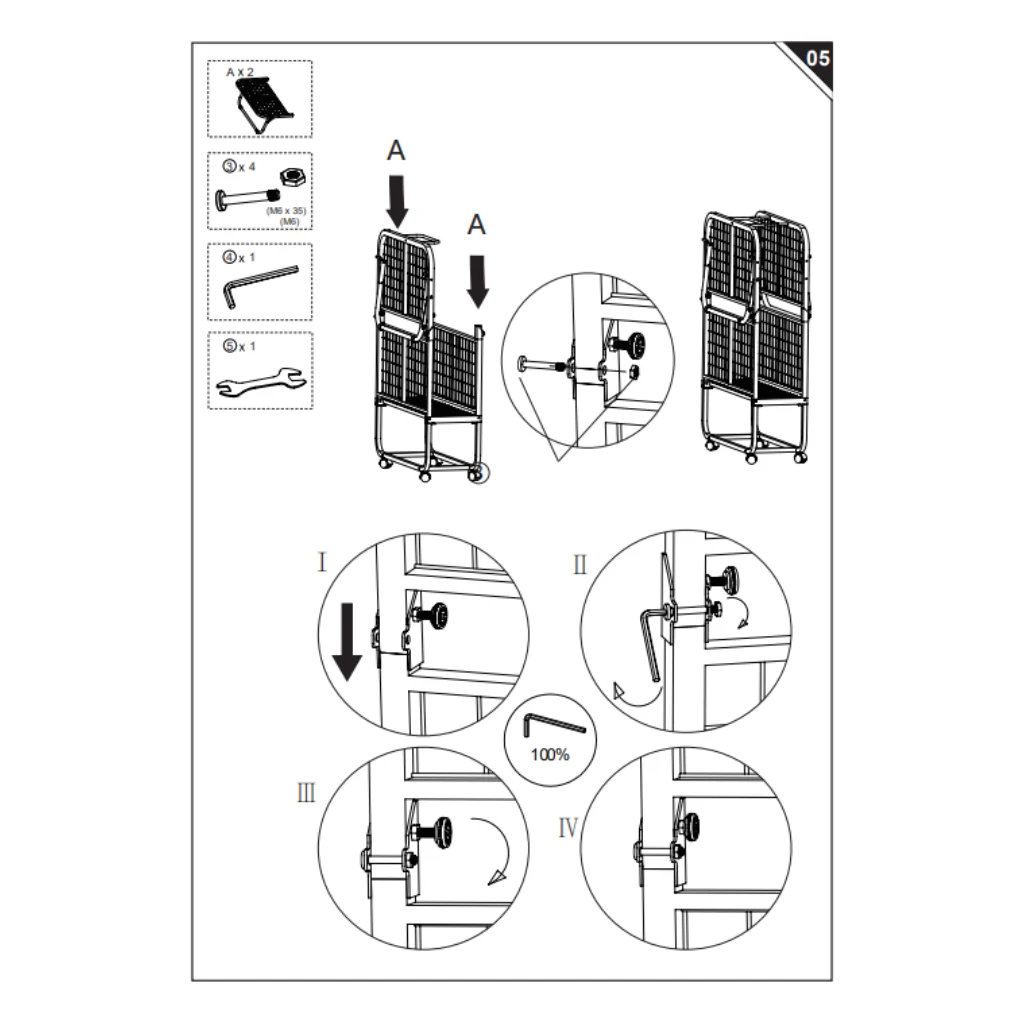

Step 5: Install the Folding Support Frames (Part A) onto the Upright Side Bases

• Position each Folding Support Frame (A) above the hinge brackets on the upright side Bases.
• Lower each frame straight downward, aligning the round hinge holes with the bracket holes.
• Insert one M6×35 Bolt (①) through each hinge connection point (two on each side).
• Thread the M6 Nuts (③) onto the bolts from the inside.
• Use the Allen Key (④) and Spanner (⑤) to tighten each connection to 100%.

Understanding the Locking Sequence (I → II → III → IV):
I — Insert and seat the bolt
II — Begin tightening
III — Hold the nut steady
IV — Final tightening

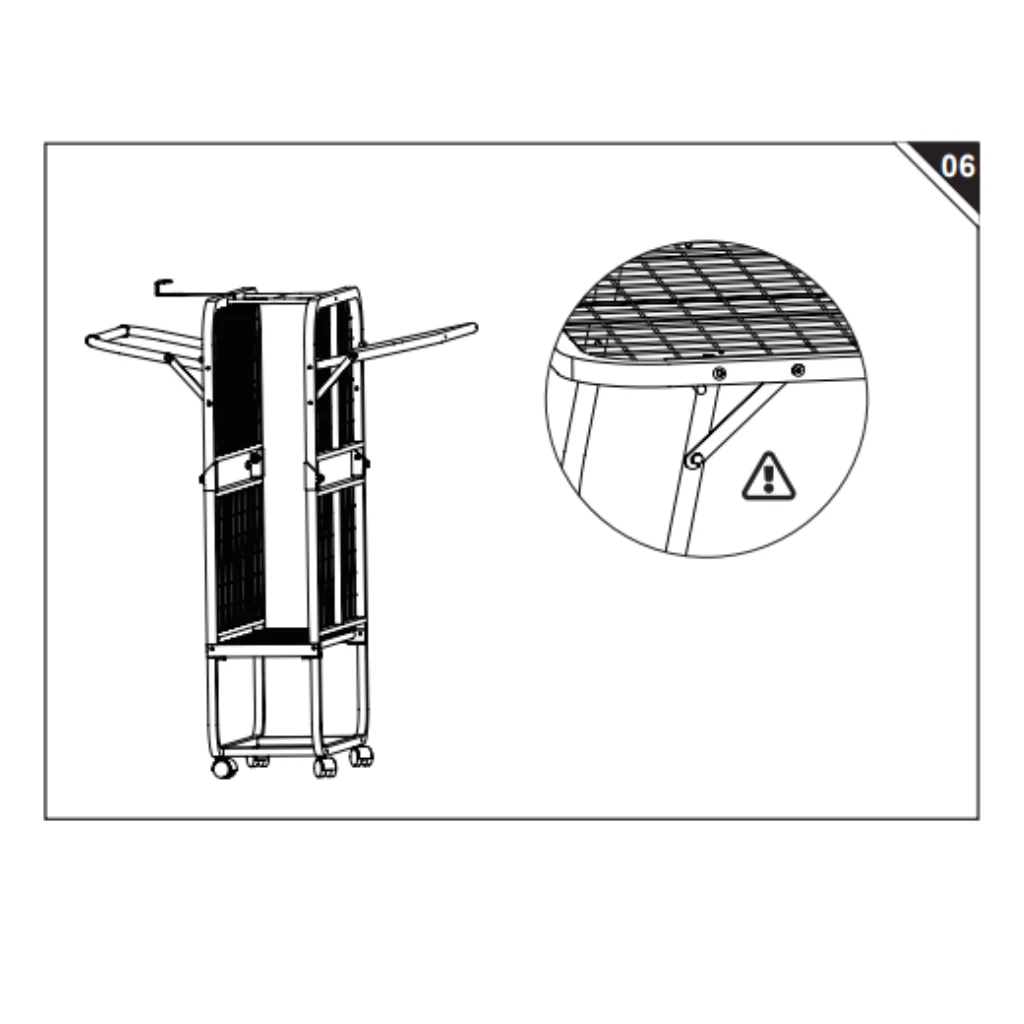

Step 6: Fully Unfold the Bed Frame and Check All Connections

• Gently pull the upper frame sections outward.
• Rotate the mesh bases downward until the entire Body Base lies flat.
• Ensure hinges open smoothly without resistance.
• Inspect all bolts, hinge brackets, and corners for proper positioning.

Important Safety Check:

Inspect highlighted hinge areas closely to confirm no bending or misalignment.

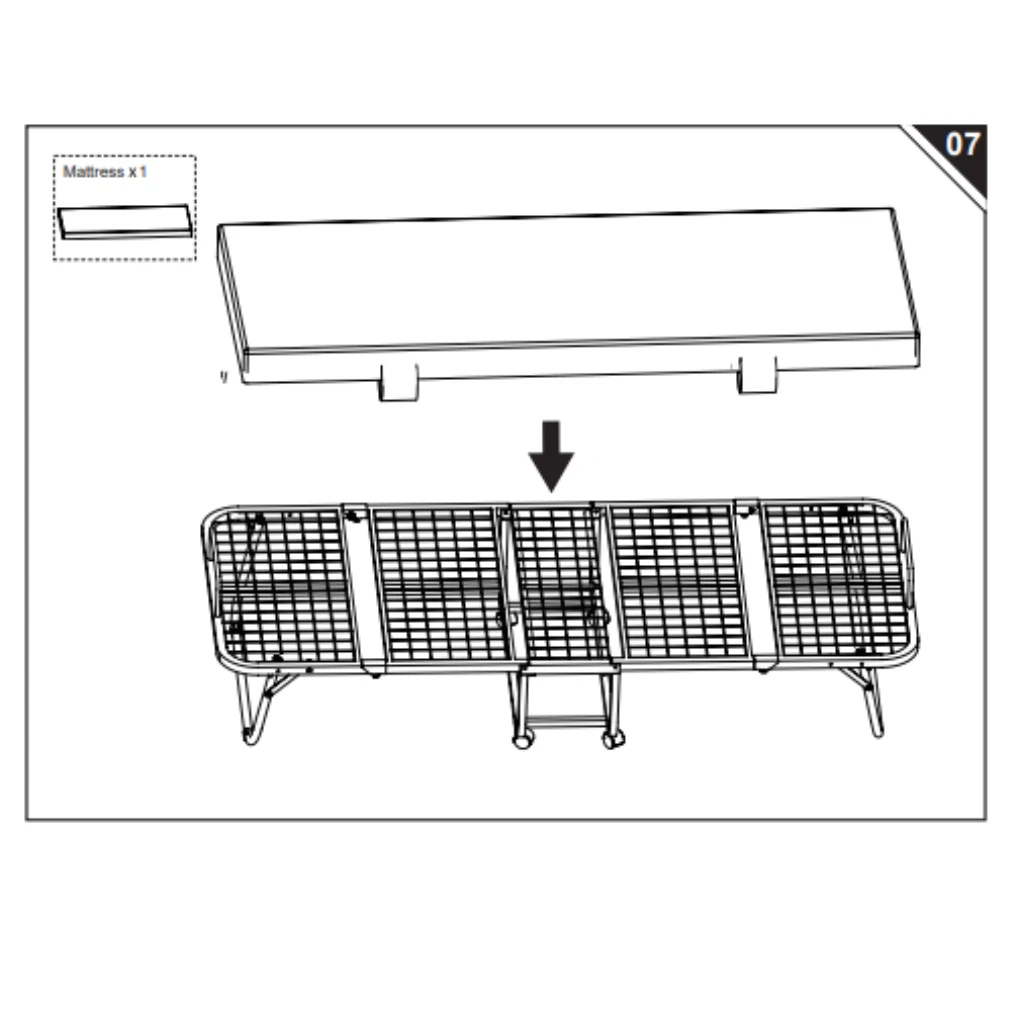

Step 7: Place the Mattress onto the Fully Opened Bed Frame

• Ensure the frame is fully extended, level, and stable.
• Lift and position the mattress over the centre of the platform.
• Lower it onto the mesh evenly.
• Adjust so edges sit flush with the frame.

Safety Tip:
Check no bolts or hinges protrude under the mattress.

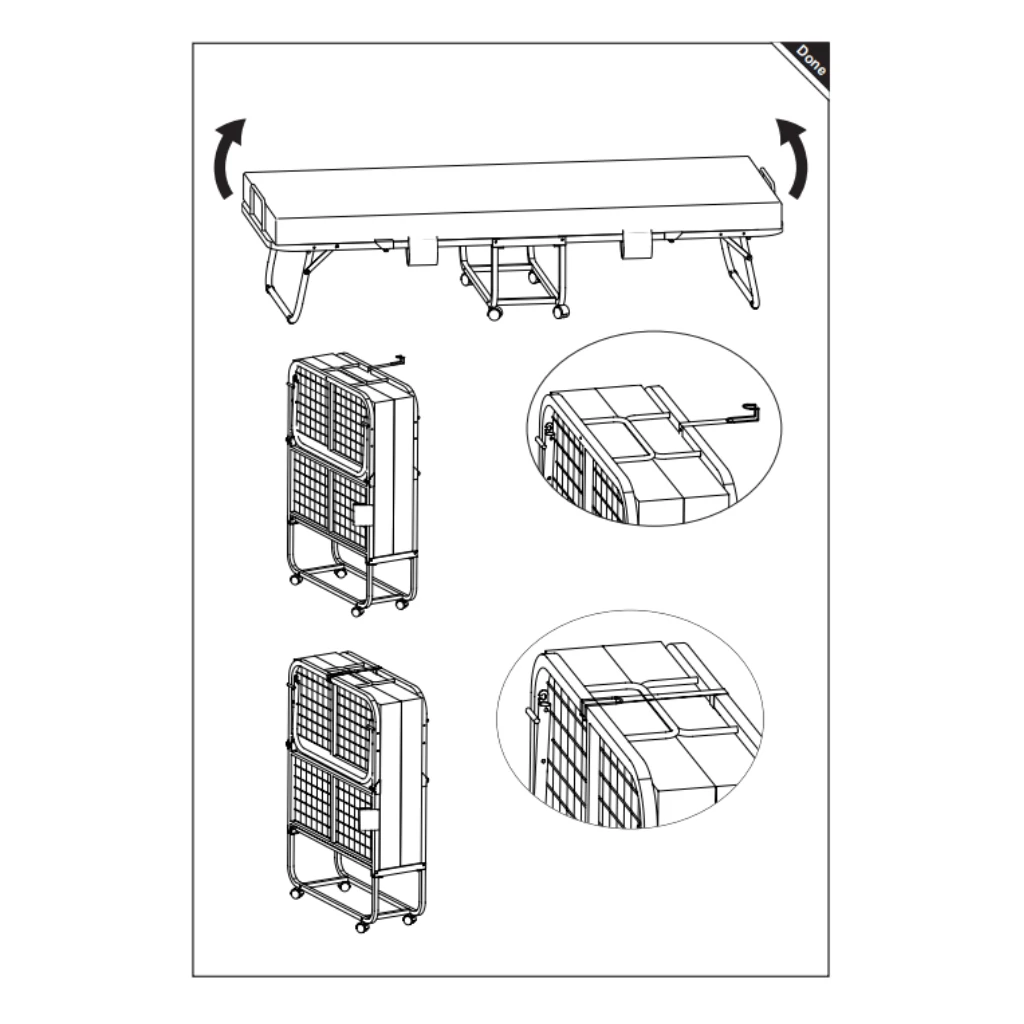

Final Step: Folding, Securing, and Storing Your Bed (Done)

1. Lift both ends of the bed upward to fold it toward the centre hinge.
2. Continue lifting until both sections close together and stand upright on the caster wheels.
3. Ensure the mattress folds naturally with the frame.
4. Align support frames and bases so the bed stands vertically without leaning.

TROUBLESHOOTING

Problem	Possible Cause	Solution
Bed feels unstable	Bolts or nuts not fully tightened	Check all connection points and tighten hardware firmly
Hinges not folding smoothly	Dust buildup or bolt misalignment	Clean hinge joints and ensure bolts aren’t overtightened
Mattress appears uneven	Foam still expanding	Allow 24–48 hours for full mattress recovery
Frame does not sit flat	Bed placed on uneven surface	Move to a flat, level area and re-check alignment
Support bars or Bases feel loose	Incomplete tightening during assembly	Tighten all Support Bars (Part C) and hinge bolts

CARE & MAINTENANCE

• Wipe the metal frame with a dry or slightly damp cloth; avoid harsh or abrasive cleaners.
• Spot-clean the mattress with mild, fabric-safe solutions.
• Store the folded bed in a cool, dry indoor area; ensure it is locked securely before moving or storing.
• Avoid exceeding weight capacity and prevent rough handling to extend lifespan.

With proper assembly and routine care, your HOMCOM Folding Bed will provide comfortable, reliable sleeping support for guests while offering an easy-to-store, space-saving design. Keep the frame secure, the mattress clean, and all joints well maintained for long-lasting performance.

You can also download the HOMCOM Folding Bed with Mattress Manual (SKU:831-516V70) for your reference.

FAQs

1. What should I do if the folding bed feels too low to the ground?

If the bed feels too low, you can place it on a thicker rug or a bed riser to add height. Ensure the bed frame is still stable and all joints are secure to avoid compromising safety.

2. How do I clean the mattress of the folding bed without damaging it?

For light cleaning, spot clean the mattress with a mild, fabric-safe detergent and a damp cloth. Avoid soaking the mattress. To keep it fresh, air it out regularly and use a mattress protector to reduce wear.

3. Can the HOMCOM folding bed be used by taller individuals?

While the bed is suitable for most people, taller individuals may find the length a bit limiting. You can opt for a mattress topper or additional padding to enhance comfort, but for extra space, a larger bed might be necessary.
