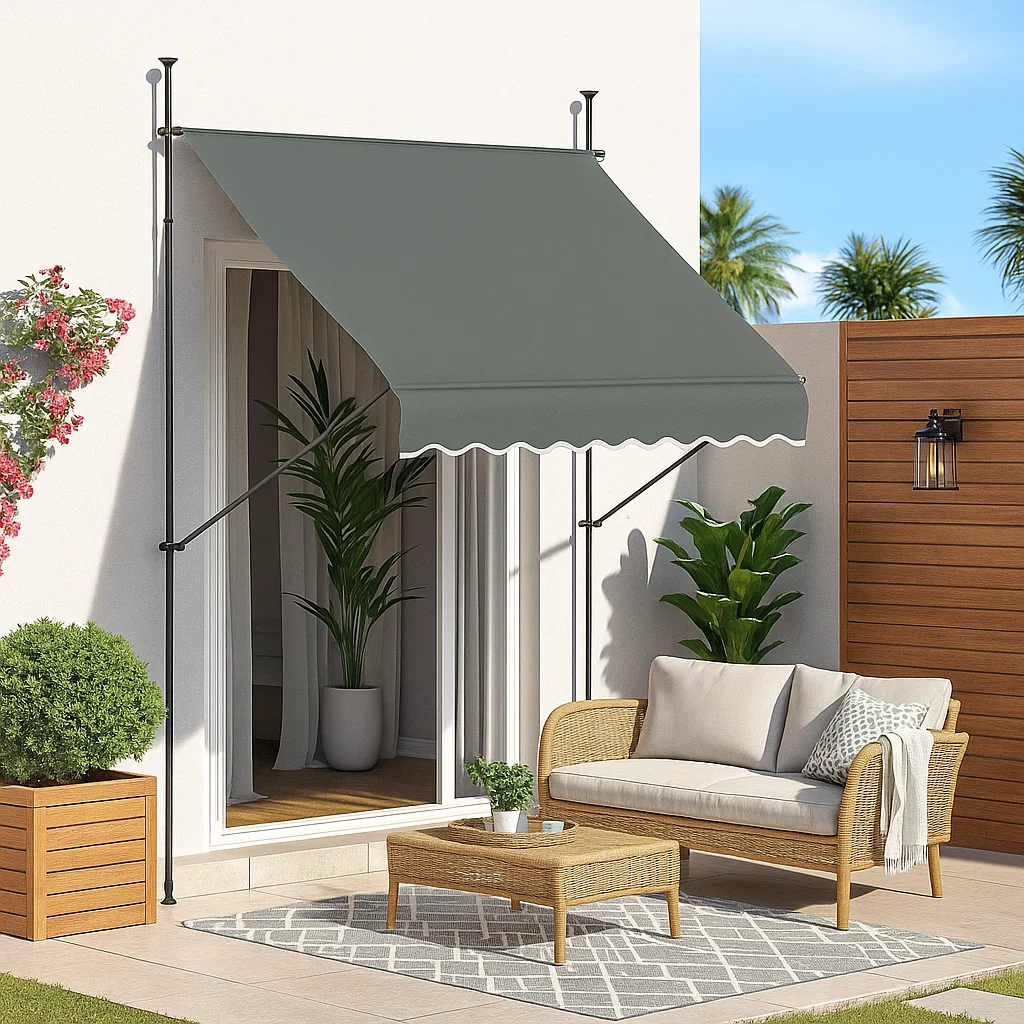

The Outsunny freestanding awning is designed for quick, drill-free installation, offering adjustable shade for patios, balconies, gardens, and other outdoor areas. This assembly manual provides a clear, step-by-step breakdown of the official 9-step process, helping you set up the awning accurately. Whether you’re assembling it for the first time or re-installing it after storage, this article ensures a smooth and hassle-free setup.
Tools Required
This assembly requires a few basic tools:
- Screwdriver
- Wrench
- Ladder
Estimated assembly time: Around 2 hours.
Safety Note
To protect the awning and ensure long-term use, the product guide advises not to use it during bad weather, including strong wind or heavy rain.
What’s Included

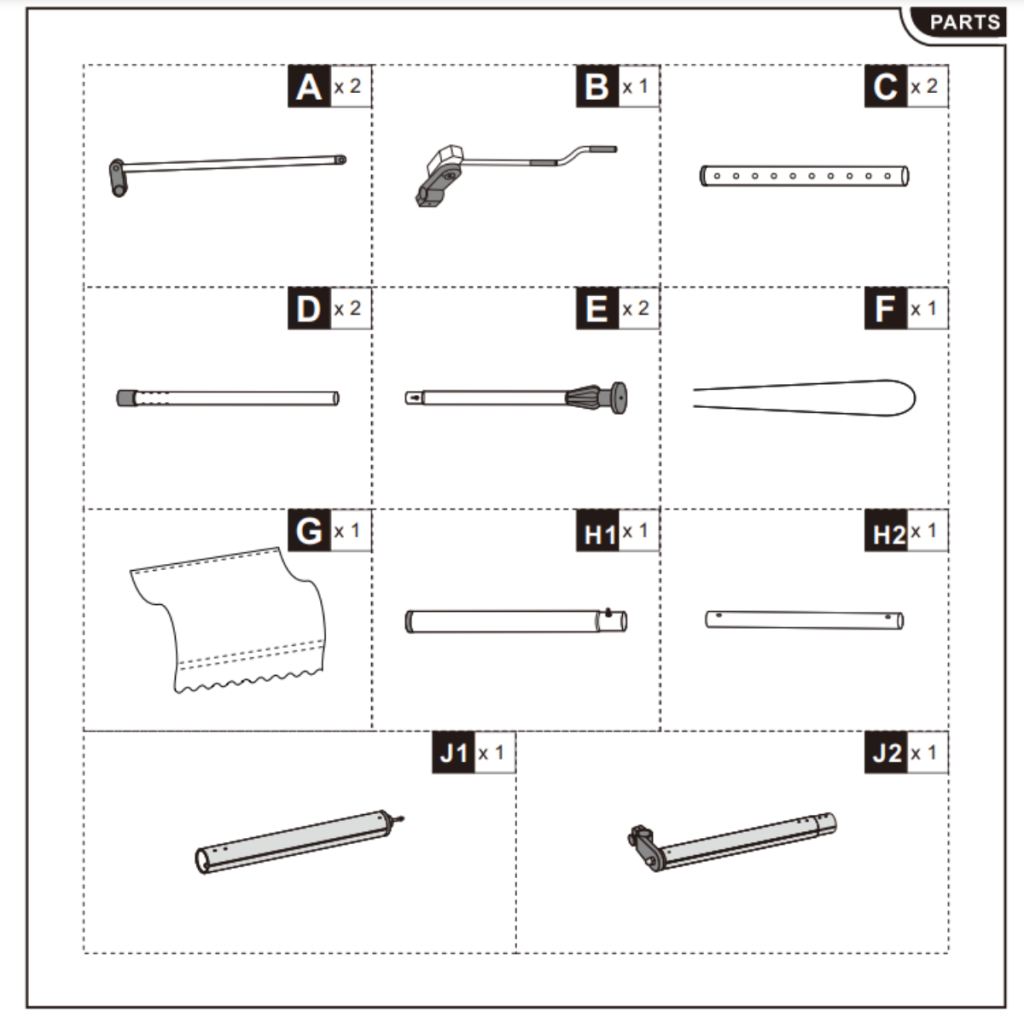

Parts
- A (x2) – Upper Support Arms
- B (x1) – Crank Joint
- C (x2) – Adjustable Vertical Poles
- D (x2) – Middle Poles
- E (x2) – Bottom Poles with Feet
- F (x1) – Pull Strap
- G (x1) – Awning Fabric
- H1 (x1) – Front Bar
- H2 (x1) – Rear Bar
- J1 (x1) – Roller Tube
- J2 (x1) – Roller End Arm

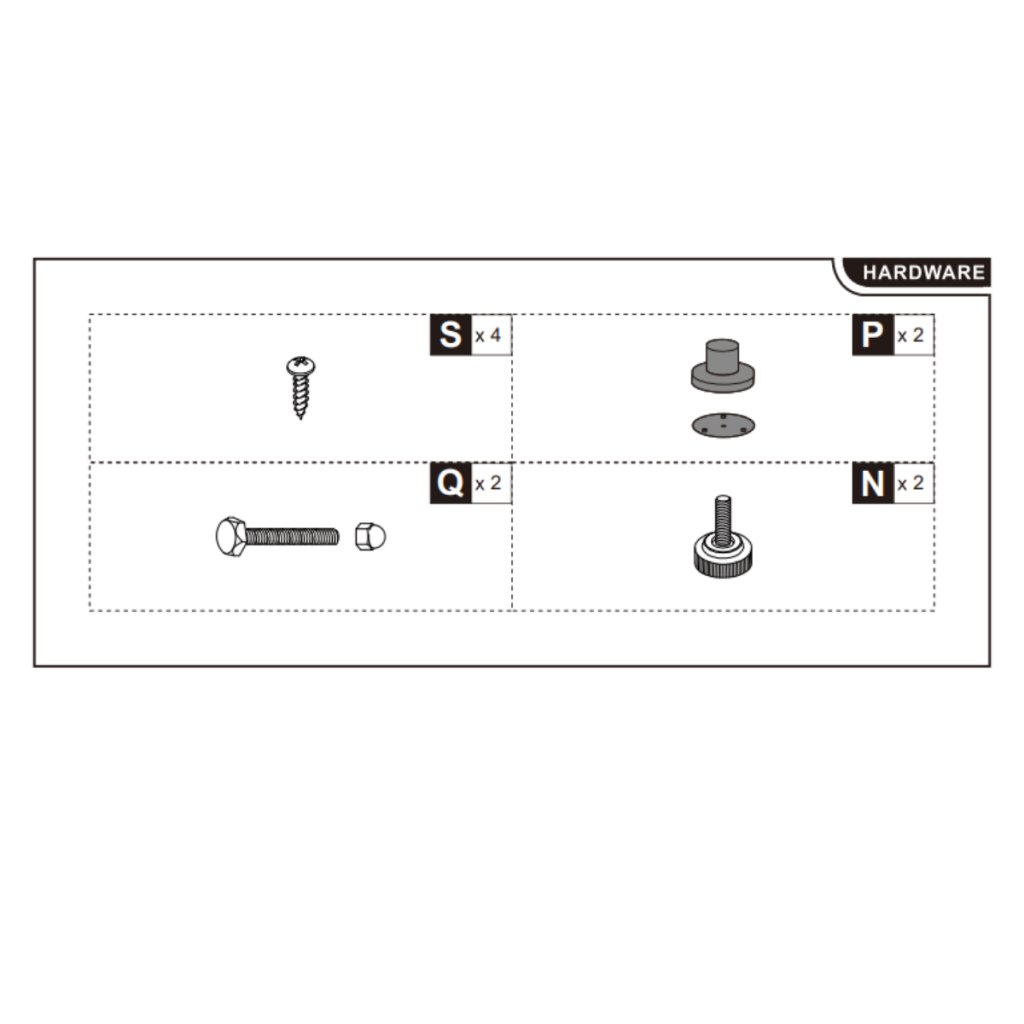

Hardware
- S (x4) – Screws
- P (x2) – Top Mount Caps
- Q (x2) – Bolts with Nuts
- N (x2) – Height Adjustment Knobs
Assembly Steps for the Outsunny Freestanding Awning
With all parts ready, you can now begin assembling your Outsunny Freestanding Awning. Follow the steps below to complete the setup:

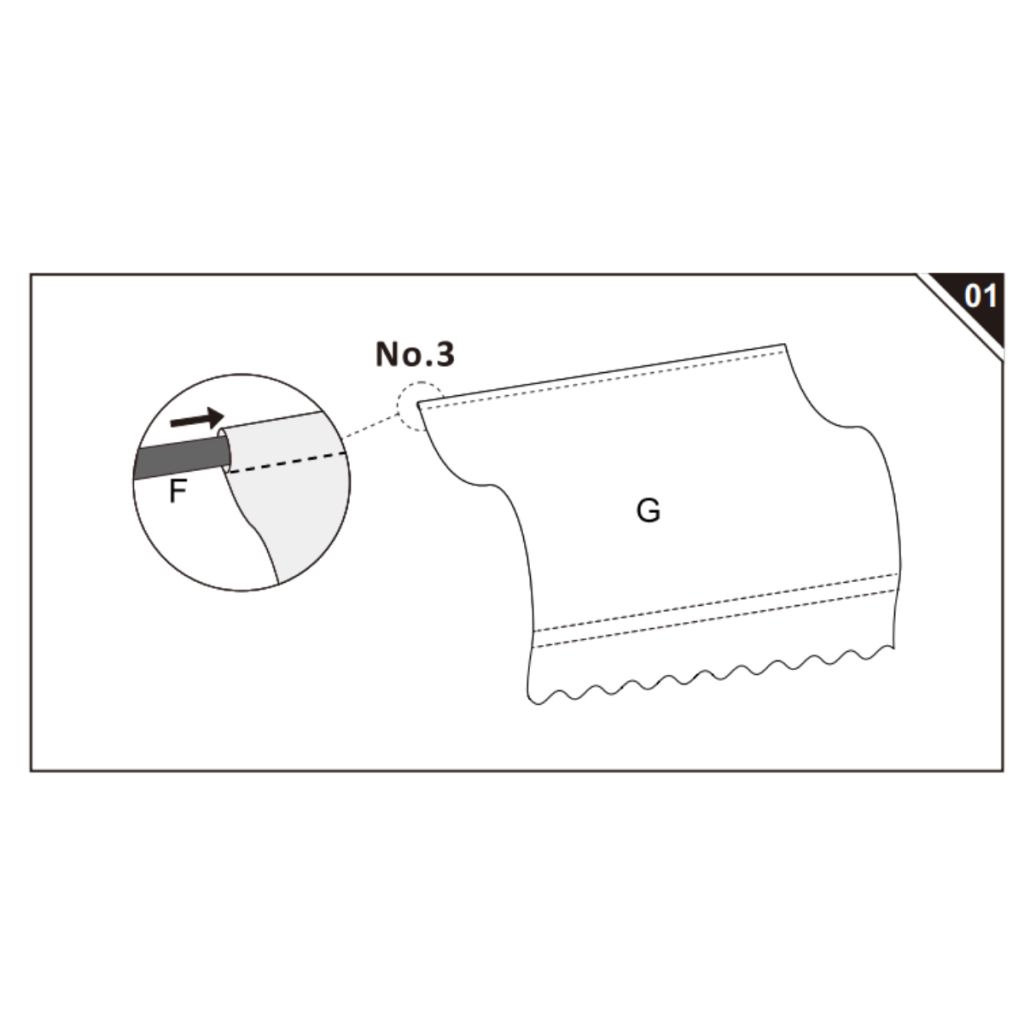

Step 1: Insert the Pull Strap
- Locate the marked edge on fabric G.
- Slide strap F into the edge channel.
- Ensure it is fully positioned inside the track.

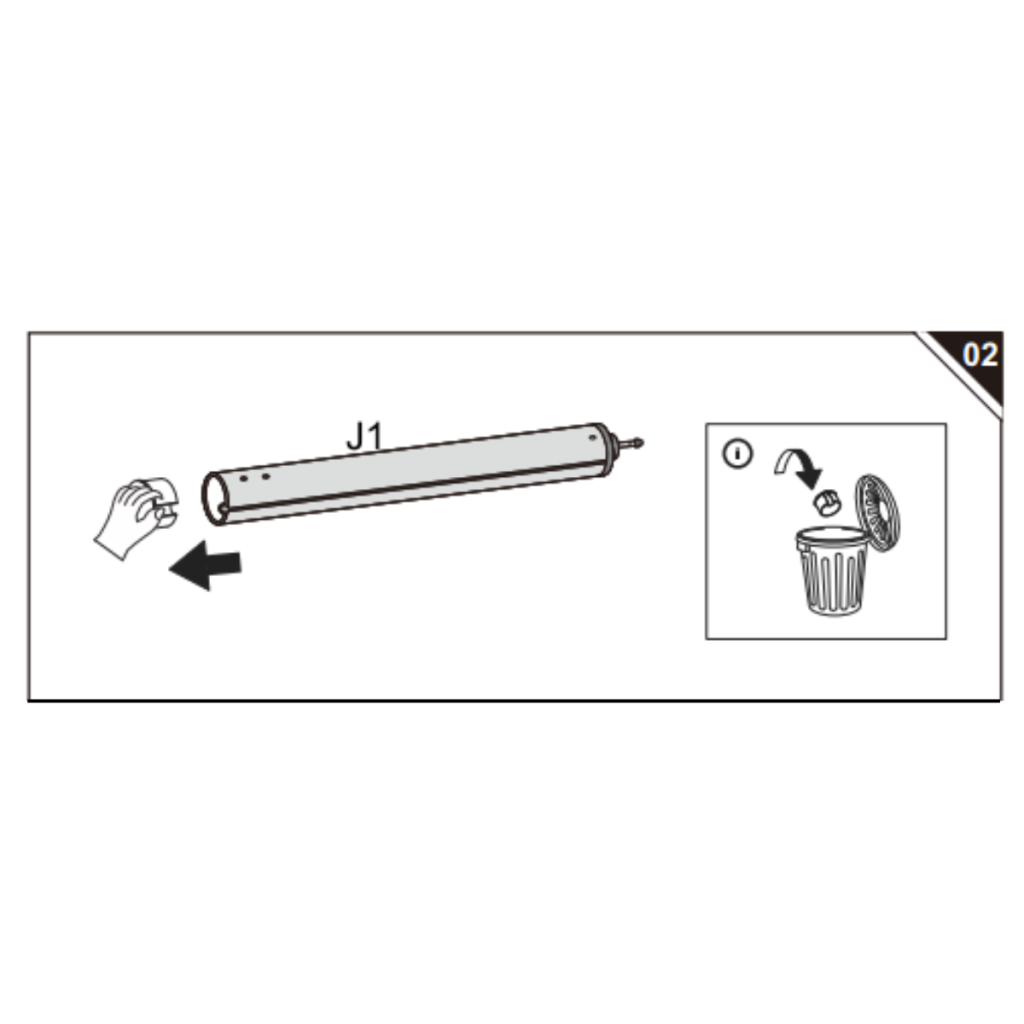

Step 2: Remove Protective Caps
- Remove the circular protective caps from each pole.
- These caps are for shipping only.
- If a cap breaks, it does not affect assembly or performance.

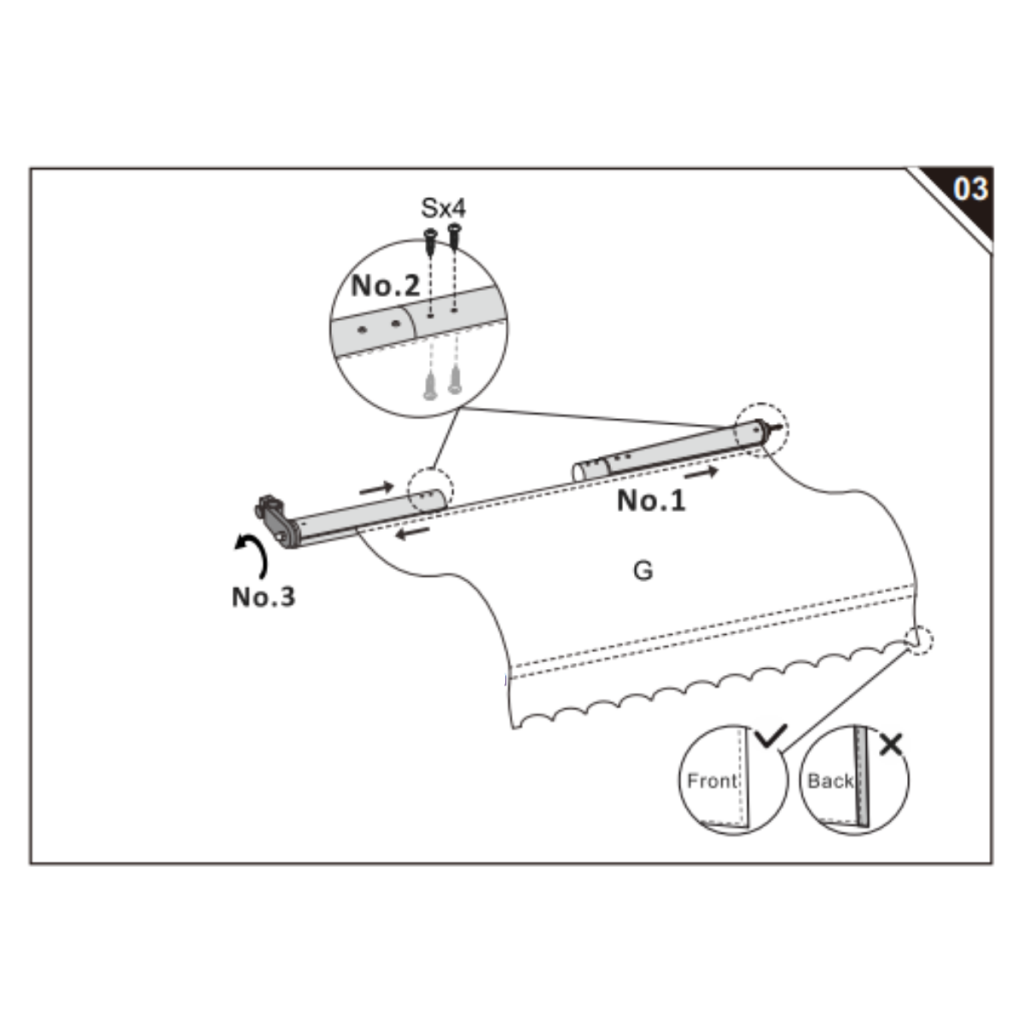

Step 3: Attach the Fabric to the Roller Tube
- Position fabric G under roller tube No.1, ensuring the front side faces outward.
- Align the fabric edge with the starting point marked No.3.
- Insert the fabric edge into the tube slot.
- Use 4 screws (S) at the No.2 points to secure it.
- Roll the fabric around the tube in the direction shown in the diagram.

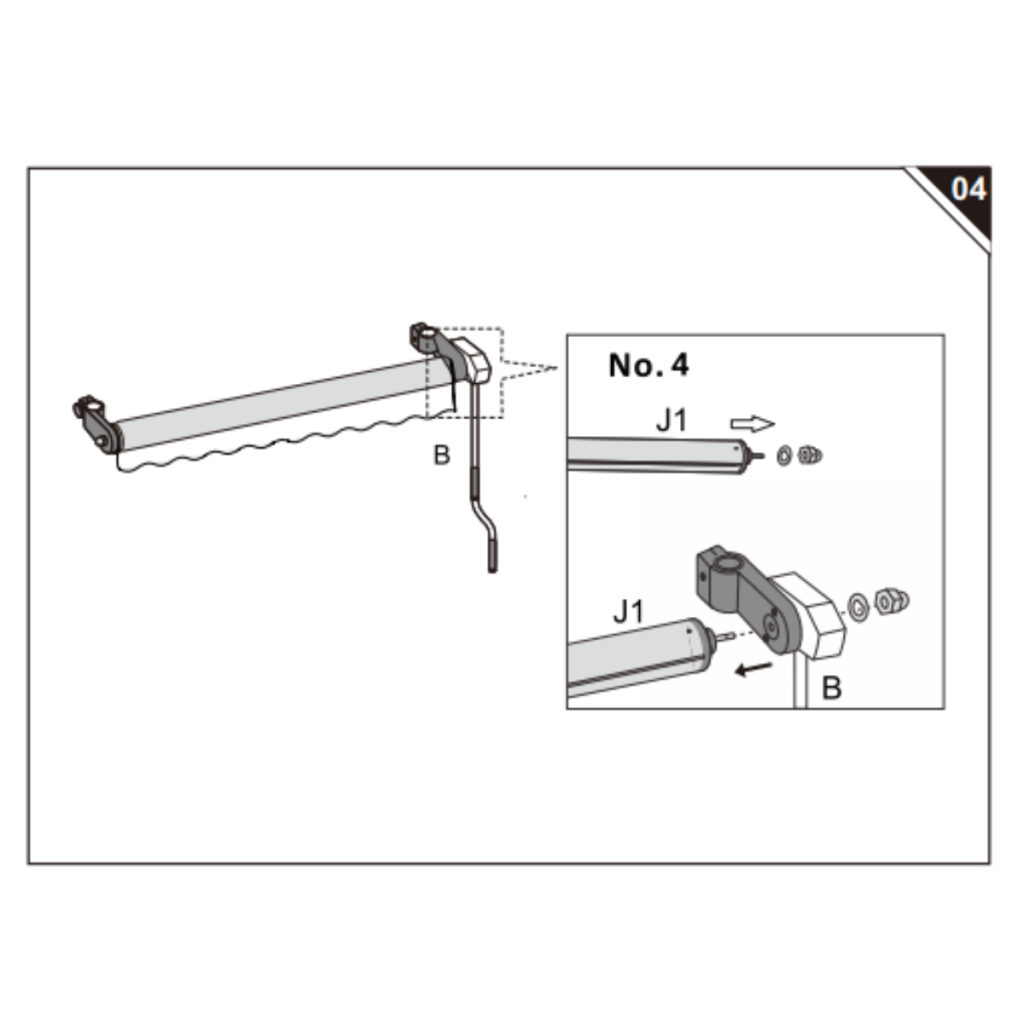

Step 4: Install the Crank Joint
- Align crank joint B with roller tube J1.
- Slide the tube fully into the joint.
- Add washer and nut (No.4) and tighten securely.

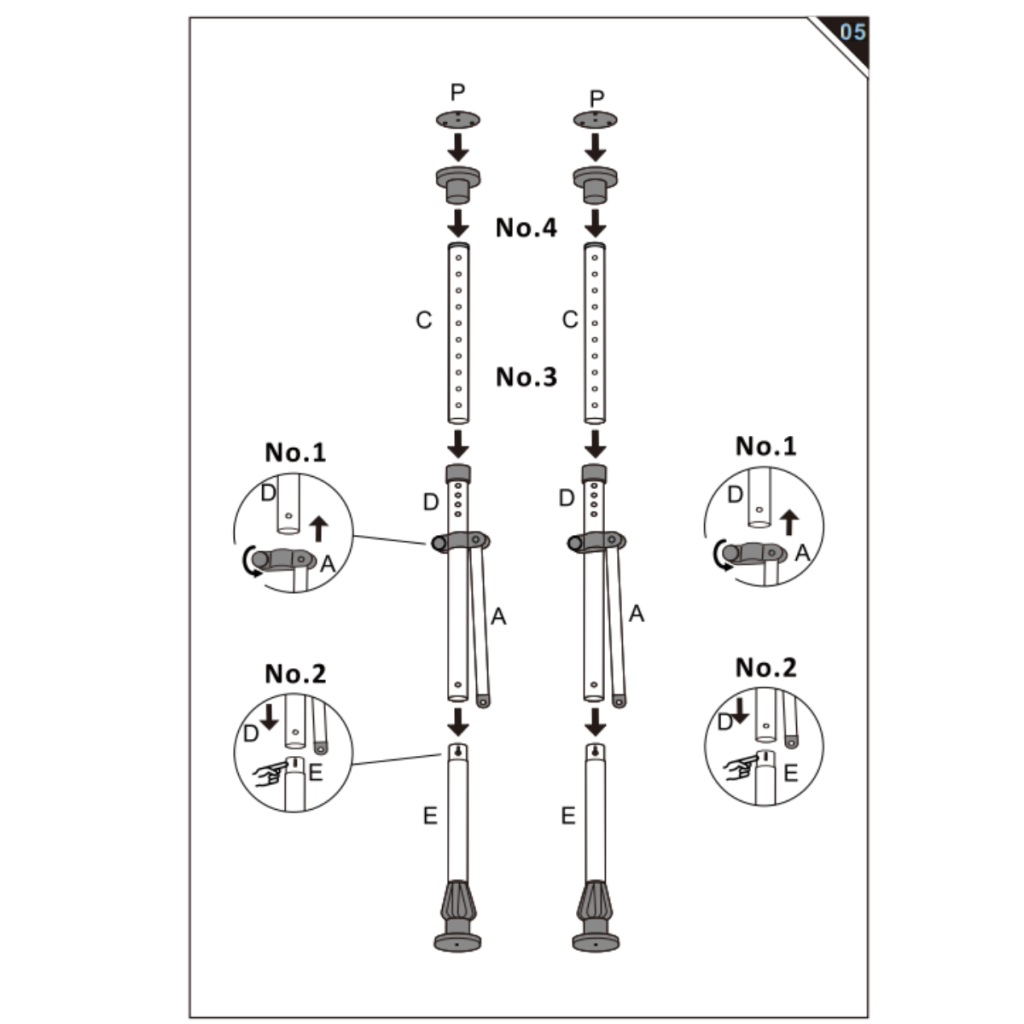

Step 5: Assemble the Pole Sections
- Connect bottom pole E to middle pole D, aligning the holes at No.2.
- Attach upper support arm A to pole D, matching the marked position No.1.
- Insert adjustable pole C into the top of pole D, aligning the height holes at No.3.
- Secure the top of pole C using hardware P and the No.4 bolt and nut.

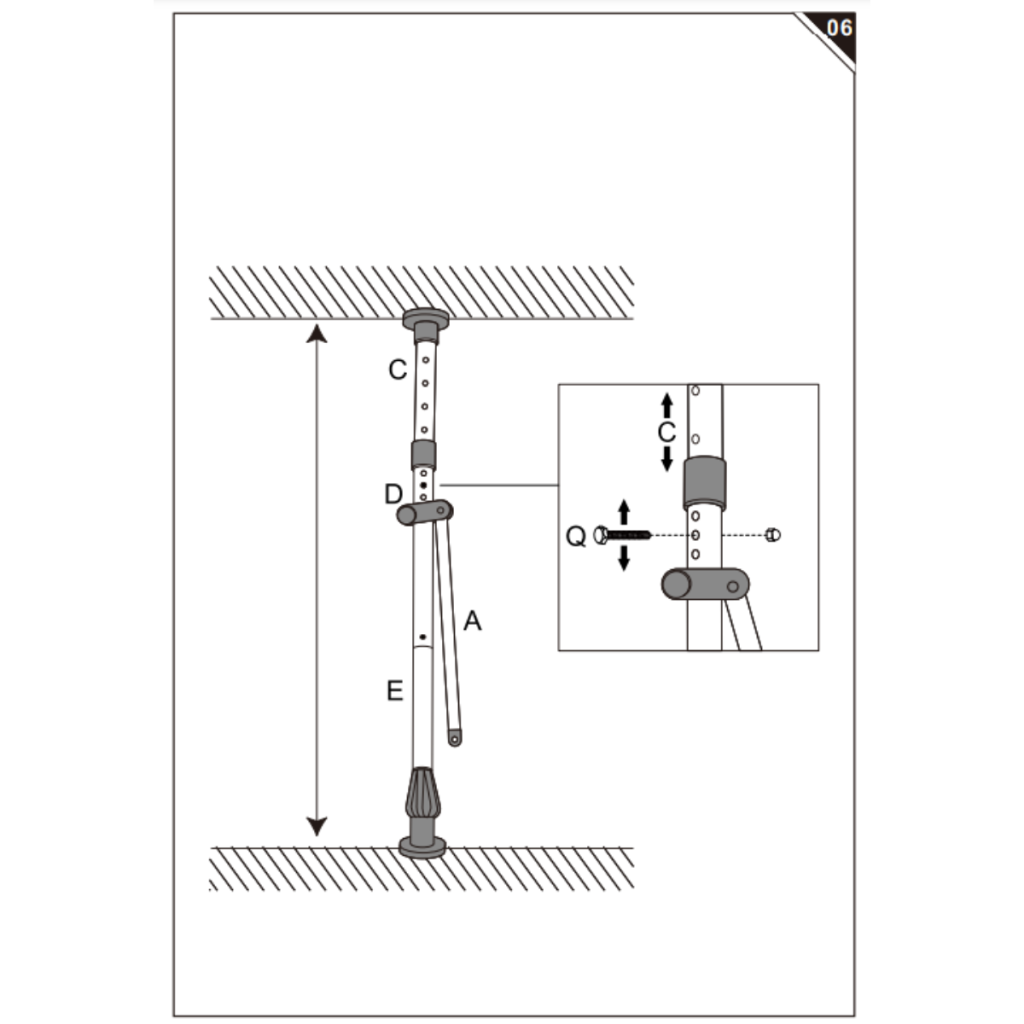

Step 6: Select the Height
- Stand the assembled poles upright.
- Choose your height by lining up the holes on pole C.
- Insert bolt Q to lock the position.
- Tighten knob N for stability.

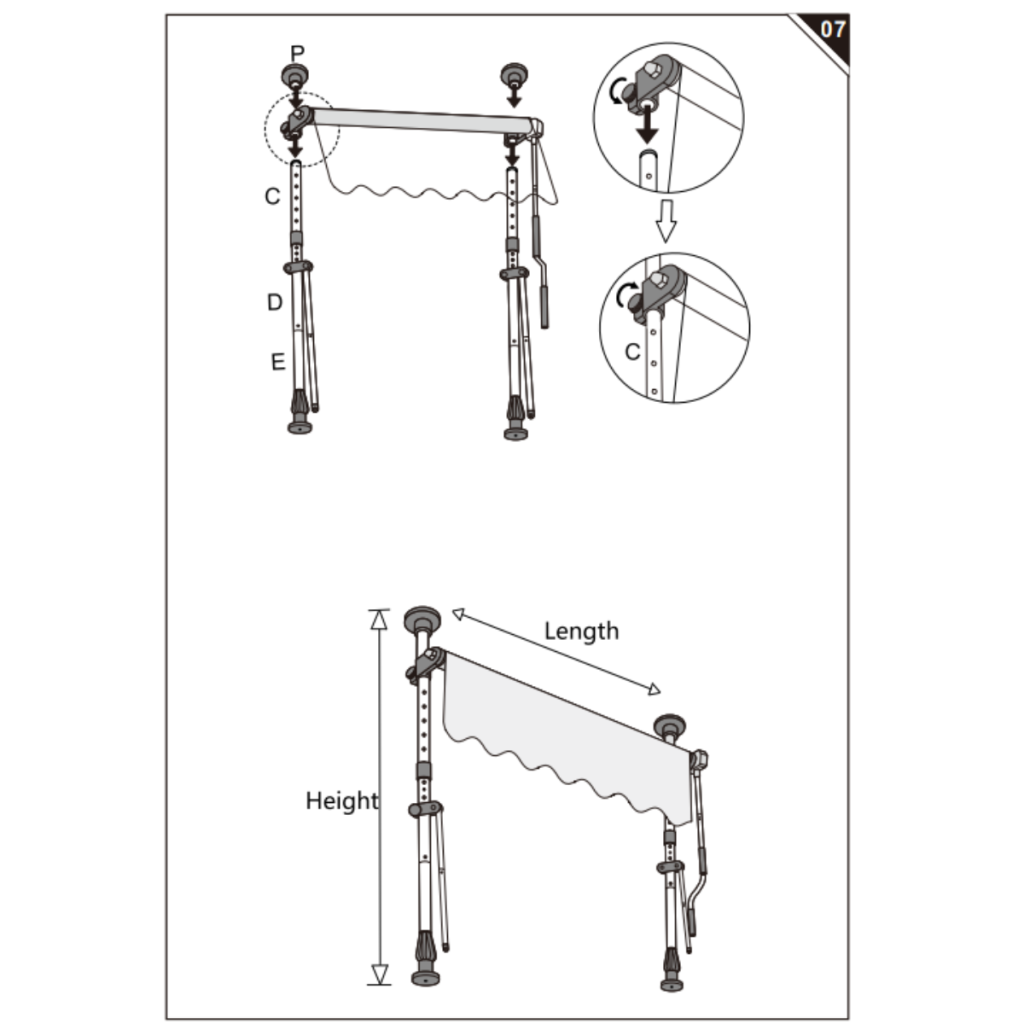

Step 7: Mount the Roller Assembly
- Place the roller assembly on top of both poles.
- Secure with top caps P.
- The awning length is fixed; only the height can be adjusted.
- Ensure both sides are level.

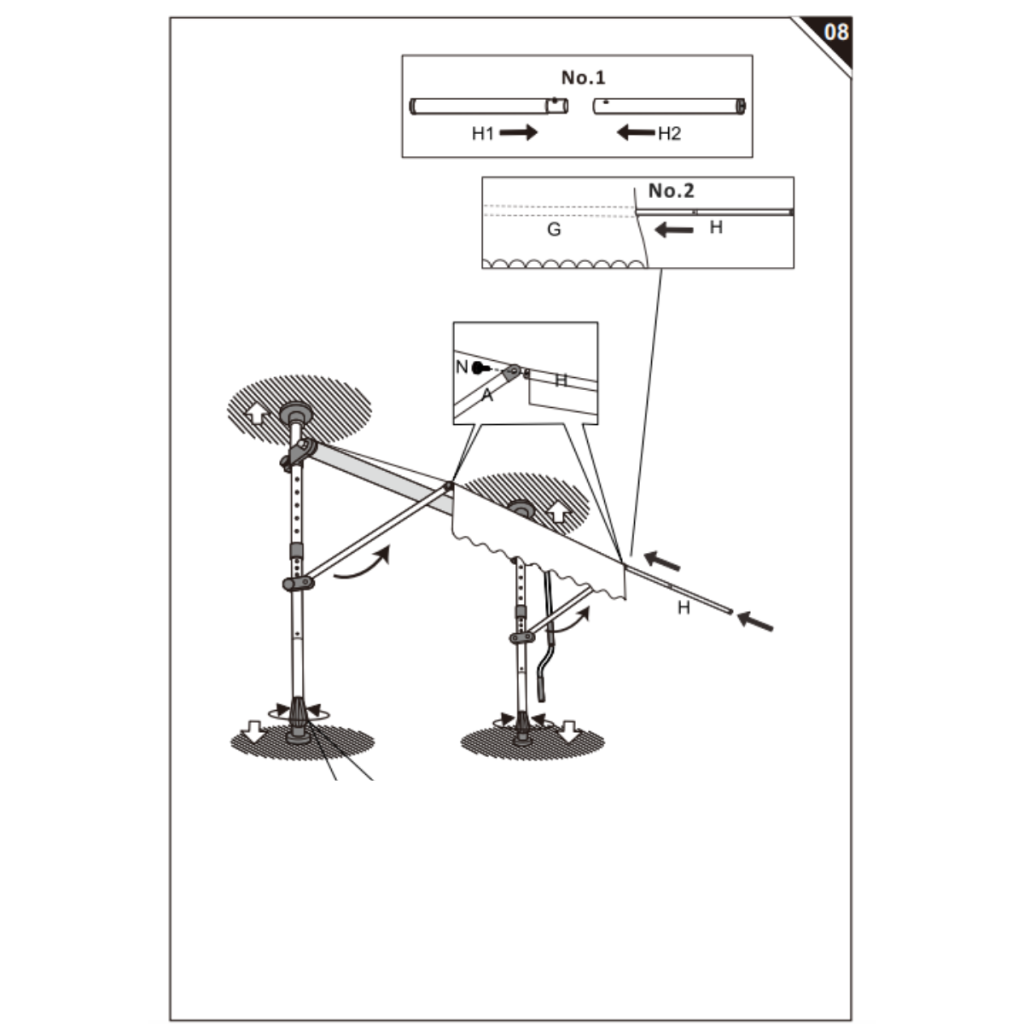

Step 8: Install Support Bars & Adjust Height
- Slide bar H1 and bar H2 into the fabric channels at the positions marked No.1.
- Lock both bars in place using knob N at the No.2 positions.
- Use the bottom adjustment knob on the pole to fine-tune the height (0–3 cm range).

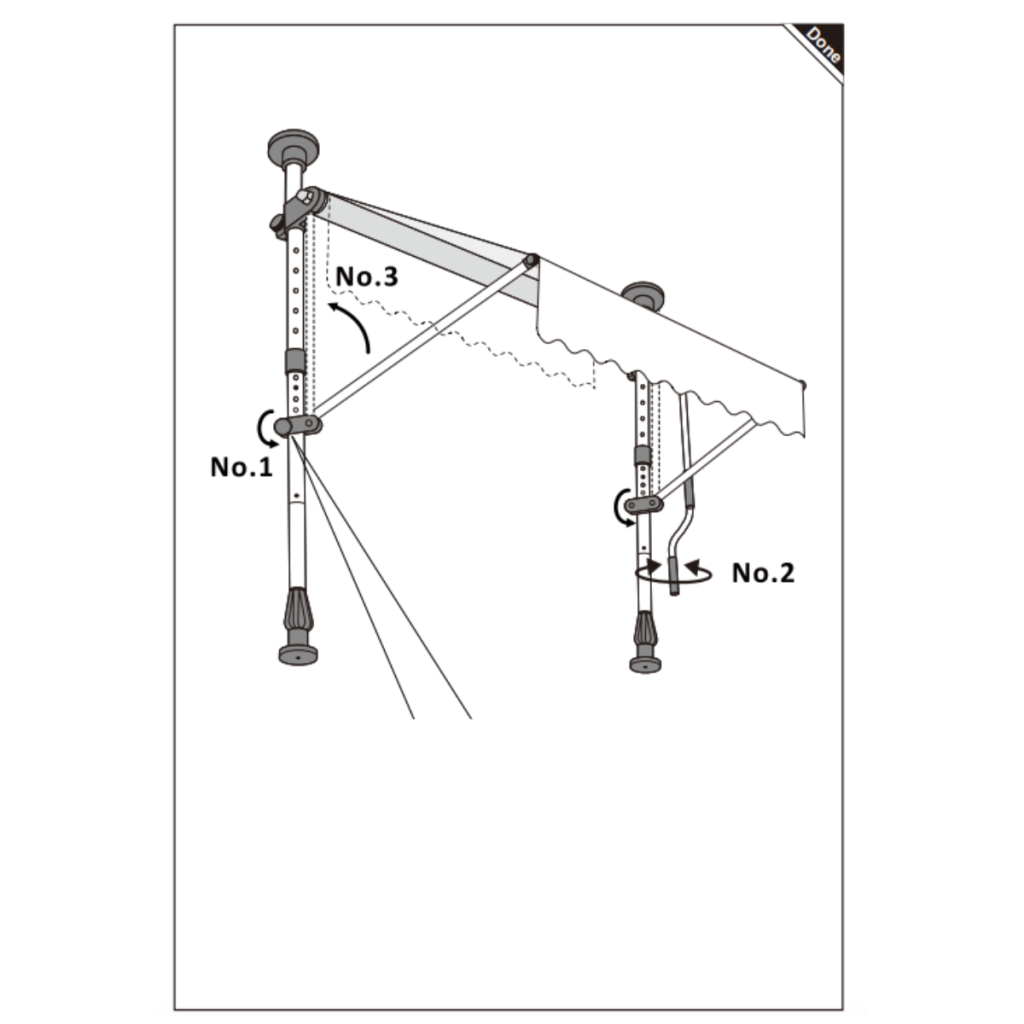

Step 9: Test the Crank Mechanism
- Loosen the knob on bar No.1.
- Turn crank handle No.2 to retract the awning.
- Stop when bar No.1 becomes vertical.
- Tighten the knob to lock it.
Final Check
Your Outsunny awning is now assembled. Verify that:
- All knobs and bolts are tight
- Both poles stand level
- The fabric rolls smoothly
- The awning retracts correctly using the crank
For long-term use, always retract the awning in wind or heavy rain.
Troubleshooting Table
| Issue | Possible Cause | Quick Solution |
| Fabric rolls unevenly | Fabric edge not fully inserted into roller slot | Remove screws, reinsert the fabric edge properly, and tighten screws evenly |
| Poles feel uneven or unstable | Bottom leveling not adjusted | Use the bottom adjustment knob to level the poles (0–3 cm range) |
| Awning height won’t lock | Bolt Q not aligned through pole C holes | Realign the holes and reinsert bolt Q, then tighten knob N |
| Crank feels stiff when turning | Crank joint nut overtightened or misaligned | Loosen slightly, realign the joint (Step 4), retighten smoothly |
| Roller assembly tilts to one side | Top caps P or connections not tightened | Recheck both sides and tighten the top hardware evenly |
| Support bars won’t slide in | Fabric channels not aligned | Realign bars H1/H2 with fabric channels and slide them straight through |
When to Call a Professional
- If pole sections do not align or feel jammed
- If hardware appears defective or missing
- If the awning does not retract even after rechecking Steps 3–4
- If the structure feels unstable after following all height and leveling adjustments
In these cases, it’s best to stop assembly and contact Aosom’s customer support for assistance. You can also download the Outsunny Freestanding Awning Manual (SKU:840-262V02CG) for your reference.
Thank you for choosing Outsunny, designed to bring comfort, style, and reliable shade to your outdoor space.
FAQs
1. Do freestanding awnings need to be anchored?
Most freestanding awnings don’t require permanent anchoring, but they should always be placed on a flat, stable surface. The built-in height adjustment knobs help level the frame. In windy areas, adding weights at the base increases stability.
2. Can one person assemble a freestanding awning?
Yes, one person can assemble it, but having two people makes the process easier and faster, especially when lifting the roller assembly onto the poles. The full setup usually takes around two hours with basic tools.
3. What surface is best for placing a freestanding awning?
Flat, solid surfaces like concrete, patio tiles, or compacted decking work best. Uneven ground may cause instability, but the bottom adjustment knob helps level the poles by 0–3 cm.
4. Can I move the freestanding awning after assembly?
Yes, freestanding awnings can be relocated, but move them carefully to avoid bending the poles. Retract the fabric fully before moving and lift from the main support poles rather than the arms.
